zadow bass pickup system
The doublebass-player mostly utilises a Piezo-Pick-up for amplification which is located somewhere on the bridge of the instrument.
Usually, in the course of the technical advancement, several types have been acquired to suit his instrument and taste and achieve the best pick up.

There probably isn't anybody that's really satisfied with the results. After much trial and error one has tented to give up. Depending on whatever system one has, problems such as these crop up all the time:

It's not possible to get a constant volume over the range of the fingerboard. There always seems to be lows and peaks.

Due to the increased amplification of the bridge´s system resonances the sound is too central, hard and unnatural.

zadow bass pickup
trial with money-back guarantee
stage reports


New! Special design without extra charge

mp3 sound sample

In instances when high volume is required, this
often leads to feedback or undamping effects. After a such a Gig, the bass player goes home totally frustrated.

Dear colleagues, don't give up - here is the solution!

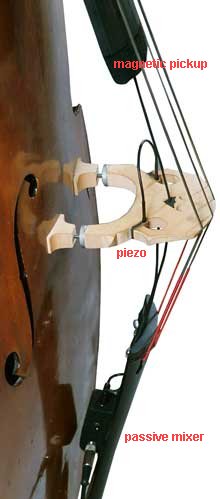

For the reproduction of low and middle frequency, our newly developed electromagnetic pick-up system is your answer. It delivers a rich, full bodied sound over the whole range of your fingerboard.zadow bass pickup system
With the help of our Passive mixer (no batteries)with its integrated filter, a special range of frequencies coming from your current piezo-pick-up (that containes the wood sound of the instrument) can be mixed in.  The mode switch is in the mix-mode position

The Result: A realistic doublebass-sound, as clear and unproblematic as an E-Bass!

The mode switch on the Mixer allows swopping between mix-mode and piezo-mode. When in the piezo mode only the piezo-pick-up is active and the base player is back to his former sound wich perhaps might be better for bowing.

zadow bass pickup system

Special Features:

Clear, rich doublebass sound
High volume without feedback
Quick and easy installation with touch-fasten

strips
Two piece Magnetic pick-up for fitting to the shape of the fingerboard and string curve, or

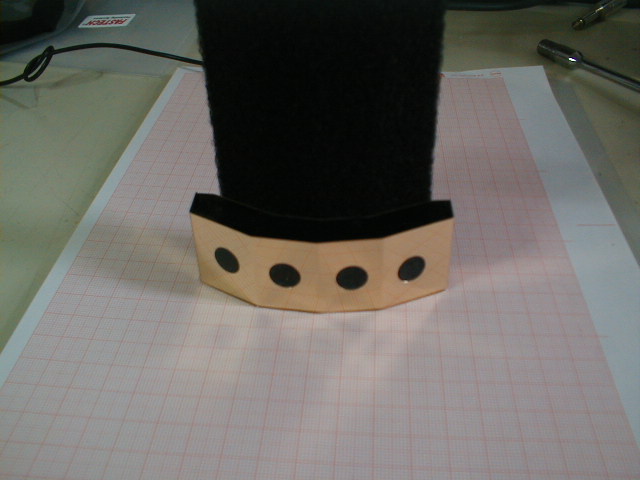

One piece Magnetic pick-up as special making

for you

Humbucking principle for hum compensation
Passive mixer without any batteries
Simple swopping between Mix-mode and Piezo-mode.
Existing Piezo system is still at your disposal
Note: only useable for steel strings!

Brass Design



Price Pickup system, black or brass, with Passive Mixer, touch-fasten strips: 249.-- €

Price only Pickup, black or brass with standard jack 6.3mm: 199.-- €

Prices are without German tax.

4 week trial with money-back guarantee.

We make the fitting pickup for your 5-string upright and for your Cello, too!

                    zadow magnetic pickup for 5-string bass



                        zadow magnetic pickup for Cello

American Cellist Corbin Keep wrote this:

Michael!!
I am SO sorry to have not been in contact sooner - got busy, kept remembering to write, then forgetting when I was actually at the computer. ANYWAY, I was able to obtain the magnets you suggested almost immediately and am happy to report to you that the pickup works great. Thank you so much. At some point in the future I will probably be ordering another for one of my other cellos, and will be recommending to other cellists as well.
Thanks again, and all the best,
Corbin
